Product Home>>Product>>High-power LED Lens Series

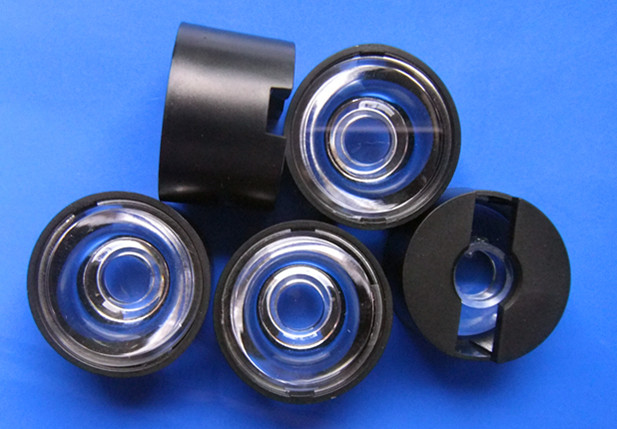

The parameters:

产品信息:(Product Information

型号:(Model NOHILL-20-红外透镜(4MM镜头)

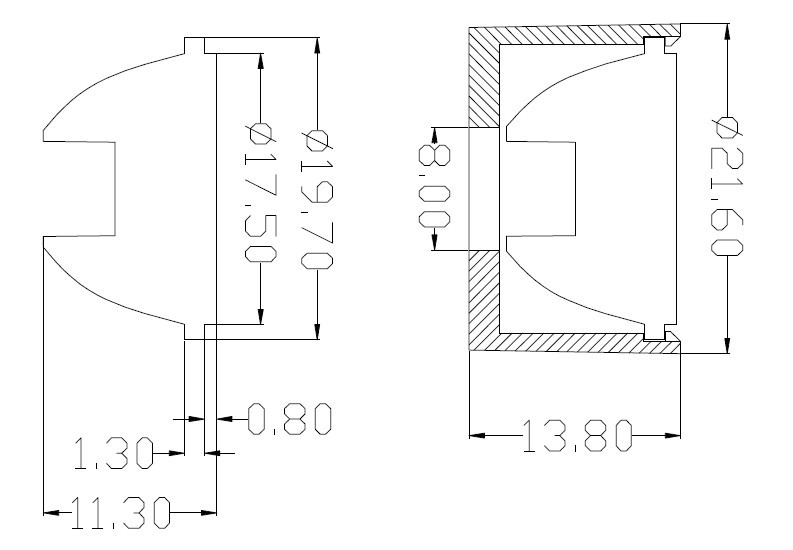

直径:(Dimension)21.76mm(含支架)

高度:(Height)     13.85mm(含支架)

孔径:(Aperture)   7.9mm(支架孔径)

角度:(LED lens angle) 6MM/8MM/12MM/16MM/25MM

材料:光学级PMMALens material: optical grade PMMA

透光率:93%  Lens transmittance: 93%

耐温:-35+90度(Temperature: -35°to +90°)

SGS/ROHS环保证  Certificates: SGS ,ROHS

匹配LED:流明,汉半,艾笛森等(Suitable for Luxeon,Seoul,Edison
